Sharp Signage Display

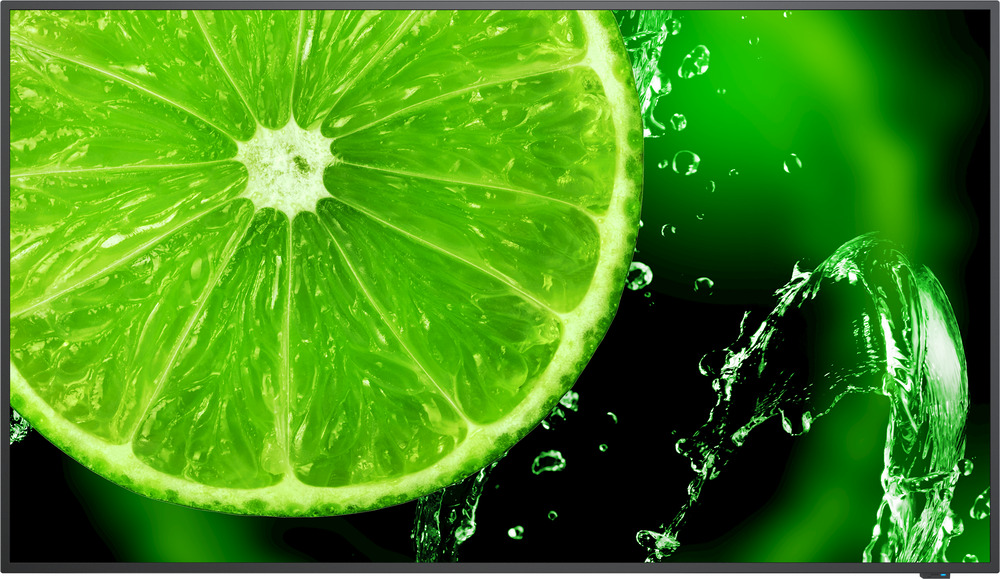

Sharp MultiSync E868
The MultiSync E868 is designed for the rigours of commercial usage and delivers the functionality and reliability you need, making it the perfect choice for corporate meeting rooms and entry level digital signage.
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
Connectivity & Compatibility
-
Energy Performance Certificates Rating G
-
This product supports UHD resolution.
-
NaViSet Administrator is a remote management and monitoring software platform for NEC and Sharp displays, projectors, and related devices
Overview
Functionality you need for presentations and digital signage Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the Sharp MultiSync® E868 meets the demands of today’s meeting environments An integrated MediaPlayer supports native UHD resolution and High Dynamic Range (HDR) for deep contrasts and natural looking content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer...
Technical Specifications
| Connectivity (Audio/Video) INPUT | |
|---|---|
| Component | 1 |
| Composite | 1 |
| HDMI | 3 |
| Audio 3.5mm Jack | 1 |
| VGA | 1 |
| Installation | |
|---|---|
| Landscape | Yes |
| Portrait | Yes |
| Horizontal | No |
| Mounting (VESA mm) | 600 x 400 (FDMI) |
| Mounting (Number of Points/Pitch) | 4 |
| Mounting Screw Specification (Size/Max Length) | M8 |
| Kensington Lock | No |
| Display Module Data | |
|---|---|
| Native Resolution (Pixels) | 3840 x 2160 |
| Backlight Technology | Direct LED |
| Brightness (cd/m²) | 350 |
| Response Time (grey to grey avg) ms | 8 |
| Pixel Pitch (mm) | 0.494 |
| Colour Depth [bn] | 1073 (10bit) |
| Active Screen Area (H/V) mm | 1895.04 x 1065.96 |
| Connectivity (Audio/Video) OUTPUT | |
|---|---|
| Audio 3.5mm Jack | 1 |
| Key Specifications | |
|---|---|
| 24/7 Operation Certified | No |
| Limited Manufacturer’s Warranty (yrs.) | 3 |
| Local Dimming | No |
| Built in Speakers (W) | 10 + 10 |
| Computer Input - Plug and Play | No |
| Power Management | No |
| Option Slot Interface | No |
| Equipment Space (Mounting) | No |
| Cabinet Colour | Black |
| Installation Handles | No |
| Fanless | No |
| Intelligent Fan | No |
| Temperature Sensor | No |
| Brightness Sensor | Yes |
| Residual Image Reduction Feature | No |
| IP Rating | No |
| Picture in Picture Mode | No |
| Picture by Picture Mode | No |
| Multi-Screen Function - Videowall Mode (Enlarge Feature) | No |
| Bezel Correction Feature | No |
| Reverse Image Feature | No |
| Multi Language OSD | No |
| Scheduler / Timer | No |
| Real Time Clock | No |
| Daisychain (Mirror mode) | No |
| Adjustment Lock Feature | No |
| Set Point Copy Feature | No |
| Power on Delay Feature | No |
| Auto Input Change | No |
| Displaying Use Time Feature | No |
| TV Tuner | No |
| Gain Control | Yes |
| Screen Adjustment | No |
| Colour Temperature Adjustment | No |
| Gamma Adjustment | No |
| Self-Adjust | No |
| Manual Image Size Adjustment | No |
| Save/Output Logging Feature | No |
| Hardware Diagnosis | No |
| Monitor Control Software Support | No |
| E-Mail Notification | No |
| SNMP | Yes |
| Temperature Control | No |
| Overscan Setting (AV) | No |
| RS232C Communication Speed Change | No |
| IR Pass-through Feature | No |
| Audio Selection per Image INPUT | No |
| Internal/External Speaker Selection | No |
| Sync on Green | No |
| Touch Interface Specification | |
|---|---|
| Pen Mode / Finger Mode | No |
| Pen Only Mode | No |
| Finger Only Mode | No |
| Palm Cancellation | No |
| Power Supply and Operating Environment | |
|---|---|
| Operating Voltage (ACV) | 100-240 |
| Frequency (Hz) | 50-60 |
| Via AC Adapter | No |
| Power Consumption (W) (Operating MAX) | 330 |
| Operating Temperature (°C) | 0 - 40 |
| Storage Temperature (°C) | -20 - 60 |
| Storage Humidity Min [%] | 10 |
| Storage Humidity Max [%] | 90 |
| Safety and Environment (EUROPE) | |
|---|---|
| Energy Star | Yes |
| CE, CB Report | No |
| GOST | No |
| Presence of Lead (Accepted application of RoHS Directive) | No |
| Weights and Measures | |
|---|---|
| Product Weight Without Stand (Kg) | 46 |
| Connectivity Wireless | |
|---|---|
| Miracast | No |
| WLAN | No |
| Bluetooth | No |
| Near Field Communication | No |
| Connectivity (Control/Serial) Data | |
|---|---|
| RS232C IN | 1 |
| LAN Port | 1 |
| Image | |
|---|---|
| Aspect Ratio | 16:9 |
| Contrast Ratio | |
| Display | |
|---|---|
| Haze Level (%) | Pro (25) |
| Panel Technology | IPS with Direct LED backlights |
| Screen Size (inch) | 86 |
| Screen Size (cm) | 217 |
| Viewing Angle | |
| Connectivity | |
|---|---|
| USB | |
| Mechanical | |
|---|---|
| Bezel Width (Left/Right) [mm] | 14 |
| Bezel Width (Upper) [mm] | 15 |
| Environmental Conditions | |
|---|---|
| Operating Humidity (min) [%] | 10 |
| Operating Humidity (max) [%] | 90 |
| Supplied Accessories | |
|---|---|
| Shipping Content | 2 x AAA batteries, Display, HDMI Cable, Power Cable, Remote Control, Setup Manual |
| Additional Features | |
|---|---|
| Colour Versions | Black Front Bezel, Black Back Cabinet |
| Accessories | |
| Special Characteristics | |
| Remote Management | |
