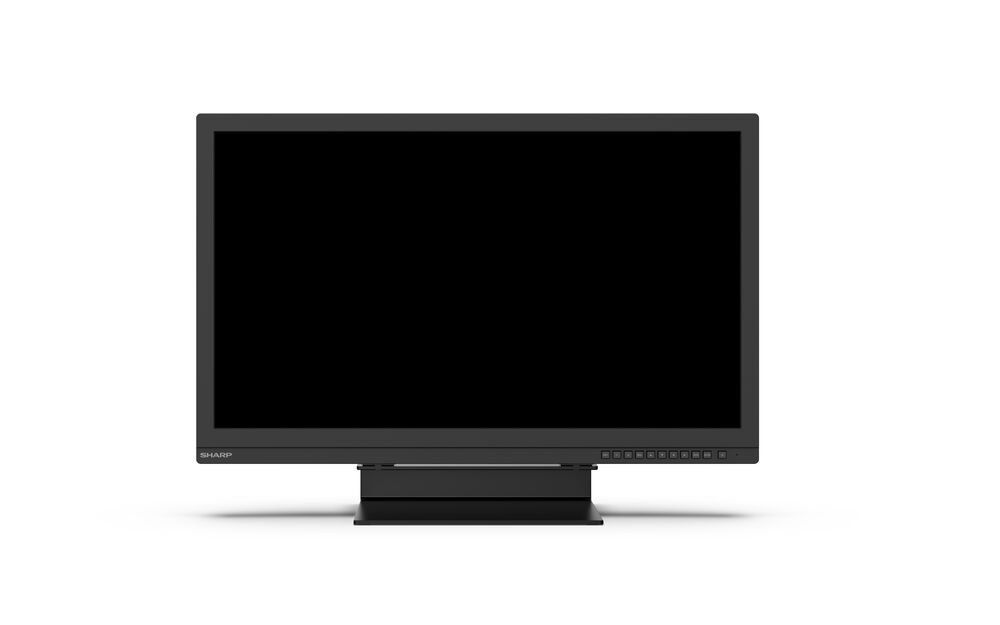

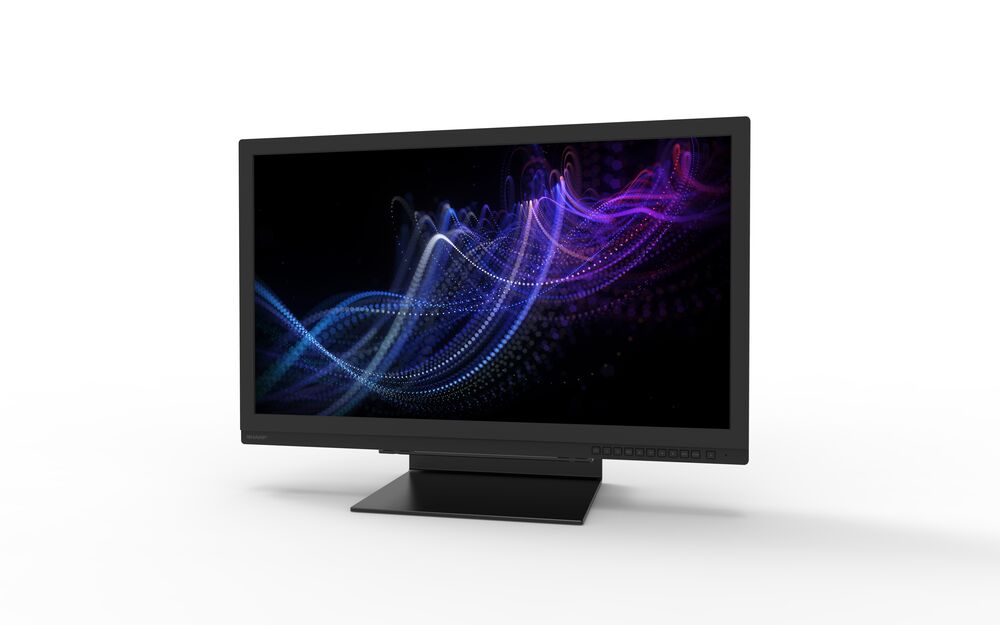

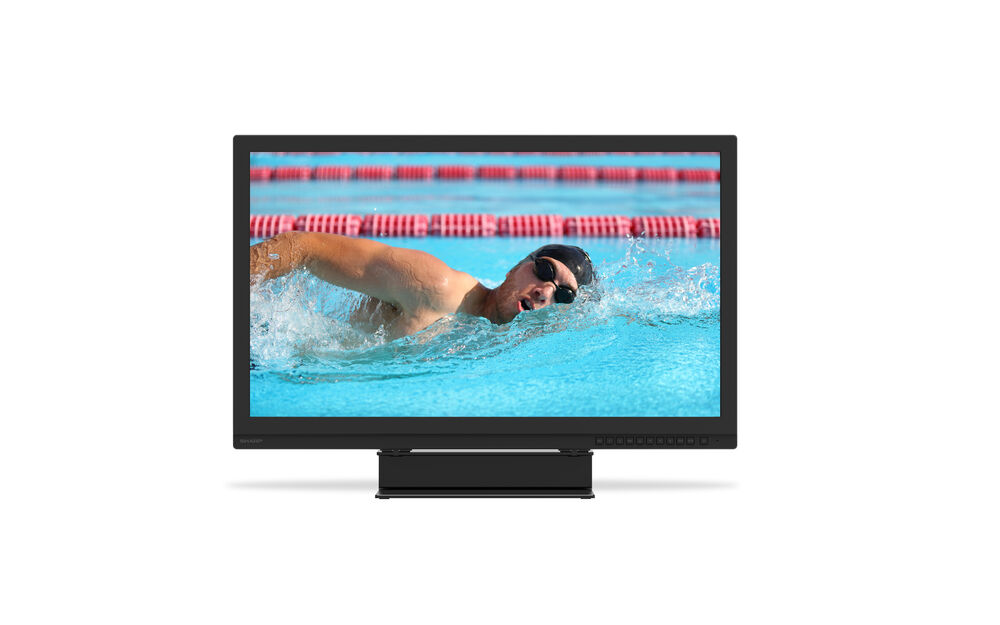

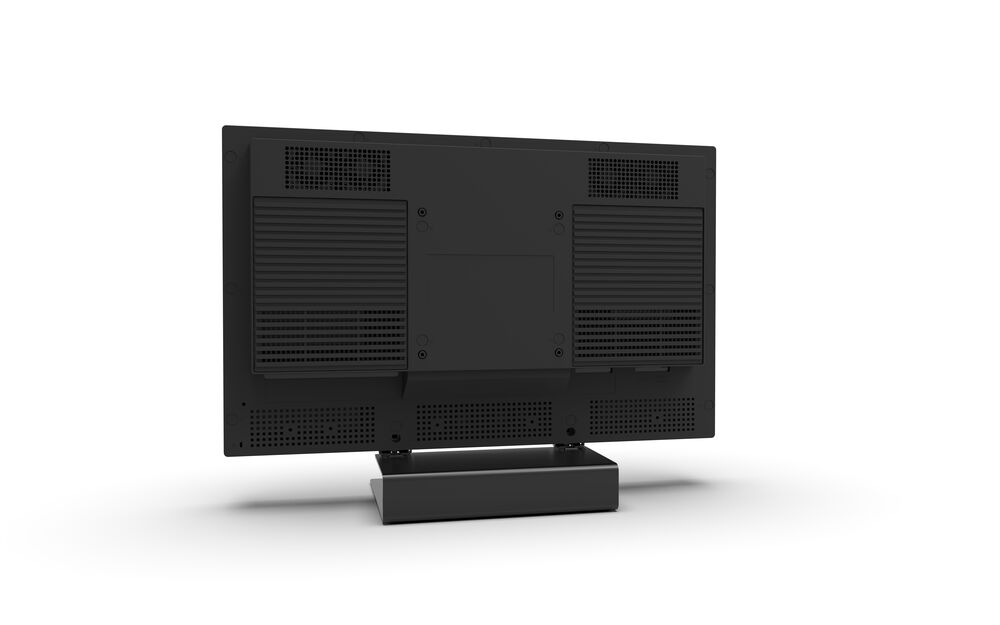

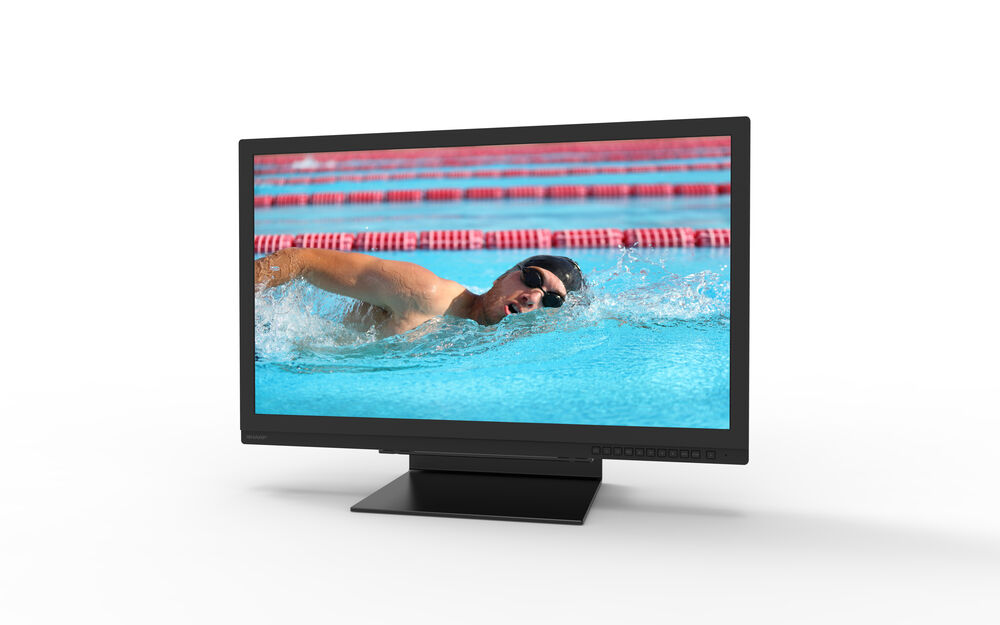

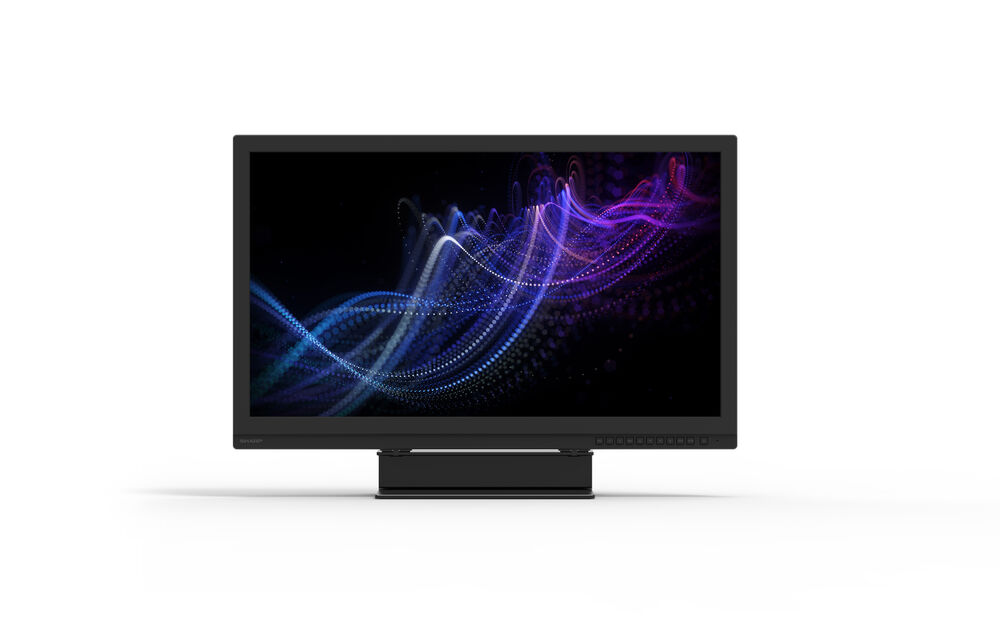

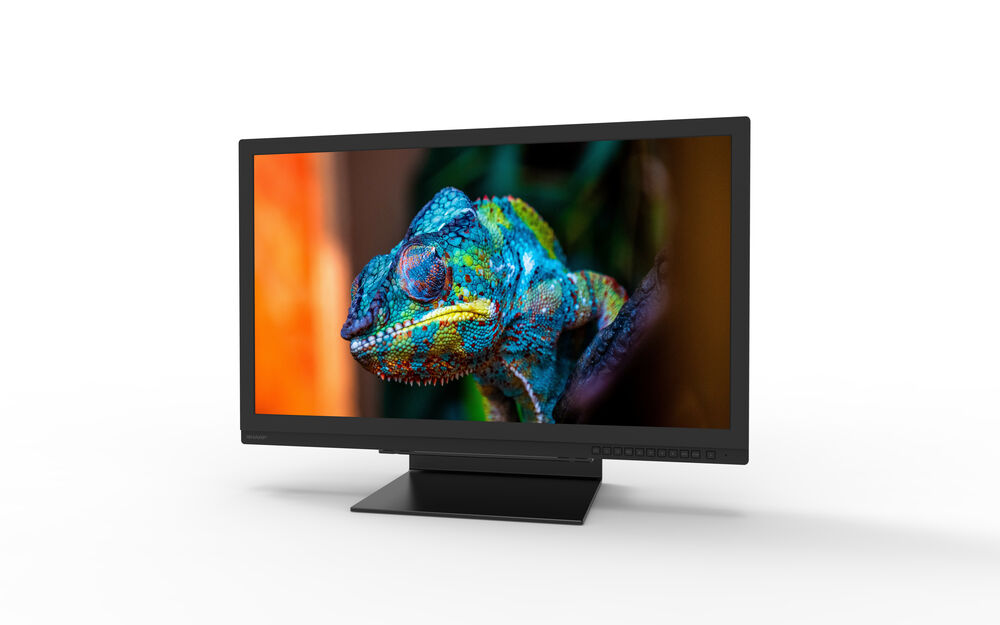

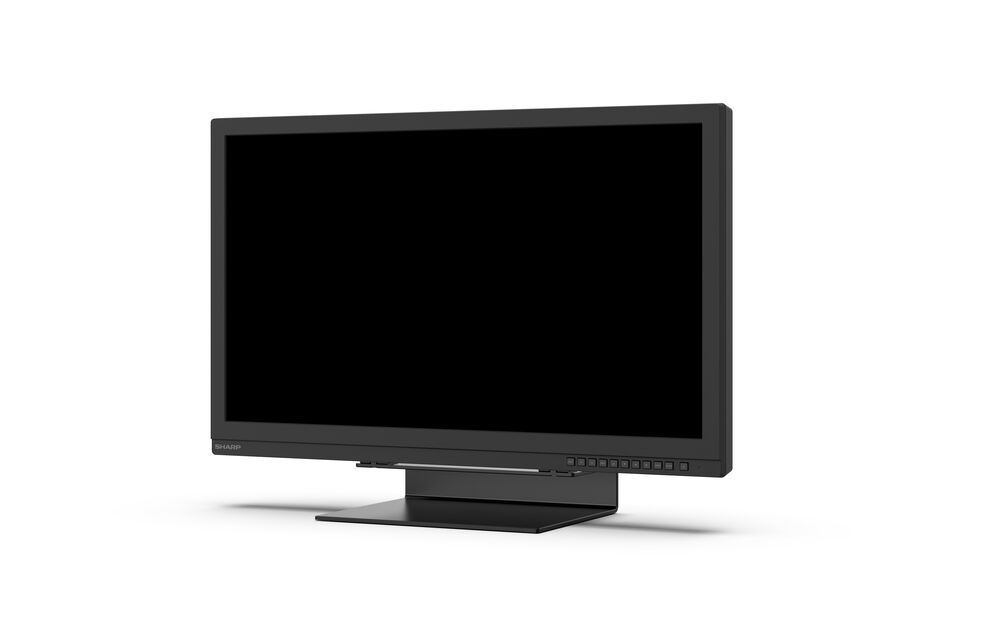

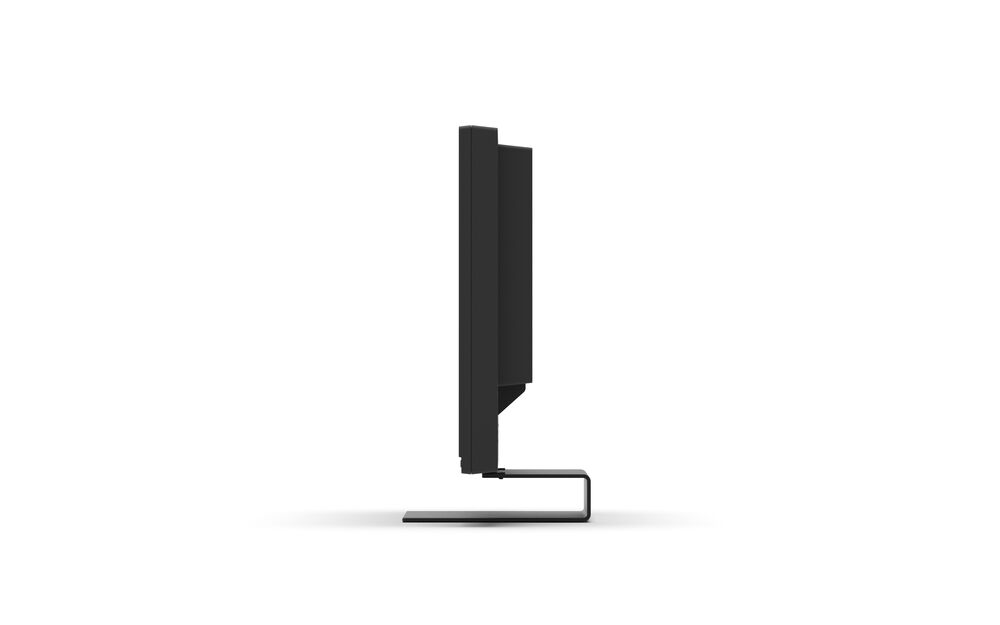

Sharp 8M-B32C1
The only 8K (native 7680x4320 pixel) colour Management Monitor in 32 inch in the market. This model is perfect for photography, broadcast, post production, imaging, medical education, CAD studio, defence and gaming production in HDR picture quality.
Key features
- 32" (80 cm) diagonal LCD (IGZO)
- Native 8K 7680 x 4320 Pixel Resolution
- HDR High Dynamic Range (HLG/PQ)
- 10-Bit Extended Colour Range
- UCCT and hardware calibration
- Direct LED backlight with local dimming
- Brightness 800 cd/m² (Peak 1000 cd/m²)
- Luminance clipping, Gamut warning, Peaking, False colour
8M-B32C1
8K 32” Colour Management Monitor
Sharp 8M-B32C1
32” 8K Professional Display for Colour Management Target Applications: photography, broadcast, post production, imaging, medical education, CAD studio, defence and gaming production in HDR picture quality
General
| Technology | no |
Display
| Screen Size (inch) | 32 |
| Screen Size (cm) | 80 |
| Colour Gamuts | 85% BT2020, 100 % sRGB, 96% DCI-P3 |
Environmental Conditions
| Operating Humidity (min) [%] | 20 |
| Operating Humidity (max) [%] | 80 |
Mechanical
| Bezel Width (Left/Right) [mm] | 26 |
| Bezel Width (Upper) [mm] | 26 |
| Bezel Width (Lower) [mm] | 49 |
Connectivity (Audio/Video) INPUT
| DisplayPort | 1 |
| HDMI | 6 |
Installation
| Landscape | Yes |
| Portrait | Yes |
| Horizontal | No |
| Mounting (VESA mm) | 200 x 200 |
| Mounting Screw Specification (Size/Max Length) | M6 |
| Kensington Lock | No |
Display Module Data
| Panel Technology | LCD (IGZO) |
| Native Resolution (Pixels) | 7680 x 4320 |
| Aspect Ratio | 16:09:00 |
| Backlight Technology | Direct LED |
| Contrast Ratio | 1000000:1 |
| Display Colours (millions) | 1064,64 |
| Response Time (grey to grey avg) ms | 9 |
| Pixel Pitch (mm) | 0.091 |
| Pixels Per Inch (ppi) | 280 |
Connectivity (Audio/Video) OUTPUT
| Audio 3.5mm Jack | 1 |
Key Specifications
| HDR High Dynamic Range | HLG, PQ |
| 24/7 Operation Certified | No |
| Limited Manufacturer’s Warranty (yrs.) | 3 |
| Local Dimming | Yes |
| Computer Input - Plug and Play | Yes |
| Power Management | No |
| Option Slot Interface | No |
| Equipment Space (Mounting) | No |
| Cabinet Colour | Black |
| Installation Handles | No |
| Fanless | No |
| Intelligent Fan | No |
| Temperature Sensor | Yes |
| Brightness Sensor | No |
| Residual Image Reduction Feature | No |
| IP Rating | No |
| Picture in Picture Mode | No |
| Picture by Picture Mode | No |
| Multi-Screen Function - Videowall Mode (Enlarge Feature) | No |
| Bezel Correction Feature | No |
| Reverse Image Feature | No |
| Multi Language OSD | Yes |
| Scheduler / Timer | No |
| Real Time Clock | No |
| Remote Management | Yes |
| Daisychain (Mirror mode) | No |
| Adjustment Lock Feature | No |
| Set Point Copy Feature | No |
| Power on Delay Feature | No |
| Auto Input Change | No |
| Displaying Use Time Feature | No |
| TV Tuner | No |
| Gain Control | Yes |
| Screen Adjustment | Yes |
| Colour Temperature Adjustment | Yes |
| Gamma Adjustment | Yes |
| Self-Adjust | Yes |
| Manual Image Size Adjustment | No |
| Save/Output Logging Feature | No |
| Hardware Diagnosis | No |
| Monitor Control Software Support | No |
| E-Mail Notification | No |
| SNMP | No |
| Temperature Control | Yes |
| Overscan Setting (AV) | No |
| RS232C Communication Speed Change | Yes |
| IR Pass-through Feature | No |
| Audio Selection per Image INPUT | No |
| Internal/External Speaker Selection | No |
| Sync on Green | No |
Touch Interface Specification
| Pen Mode / Finger Mode | No |
| Pen Only Mode | No |
| Finger Only Mode | No |
| Palm Cancellation | No |
Power Supply and Operating Environment
| Operating Voltage (ACV) | 100-240 |
| Frequency (Hz) | 50-60 |
| Via AC Adapter | No |
| Power Consumption (W) (Operating MAX) | 260 |
| Power Consumption (W) (Standby) | 0.5 |
| Operating Temperature (°C) | 0 - 35 |
Safety and Environment (EUROPE)
| Energy Star | No |
| CE, CB Report | Yes |
| GOST | No |
| Presence of Lead (Accepted application of RoHS Directive) | No |
Weights and Measures
| Shipping Carton Dimensions (Width) mm | 861 |
| Shipping Carton Dimensions (Height) mm | 636 |
| Shipping Carton Dimensions (Depth) mm | 375 |
| Product Weight Without Stand (Kg) | 13 |
| Product Weight With Stand (Kg) | 192 |
| Shipping Weight (Kg) | 23 |
Connectivity Wireless
| Miracast | No |
| WLAN | No |
| Bluetooth | No |
| Near Field Communication | No |
Connectivity (Control/Serial) Data
| USB | 2 |
