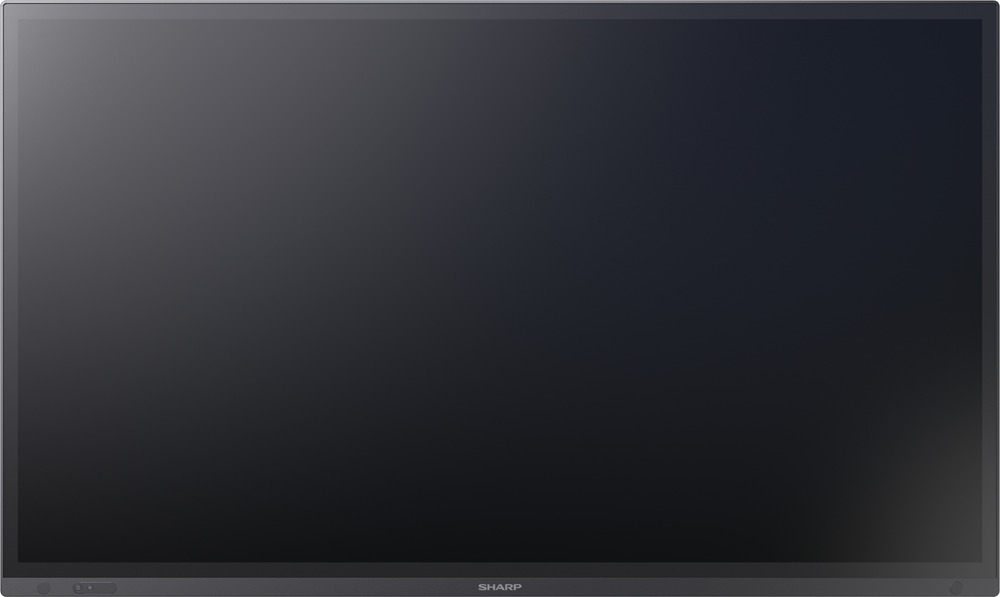

Sharp/ NEC PN-LA752
Safeguarding security and promoting productivity in hybrid meetings.

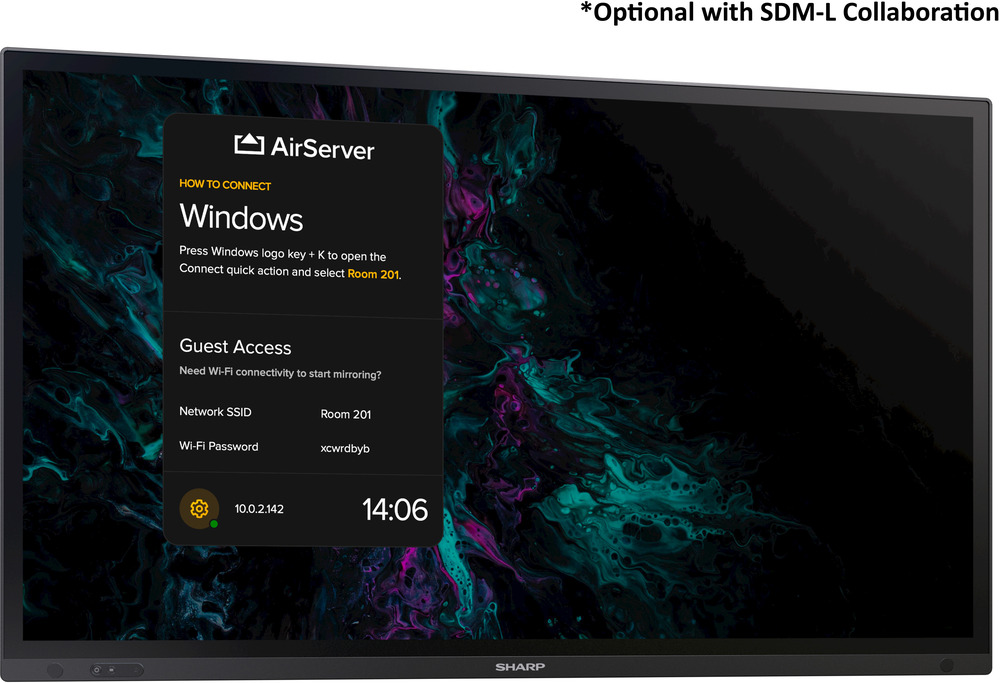

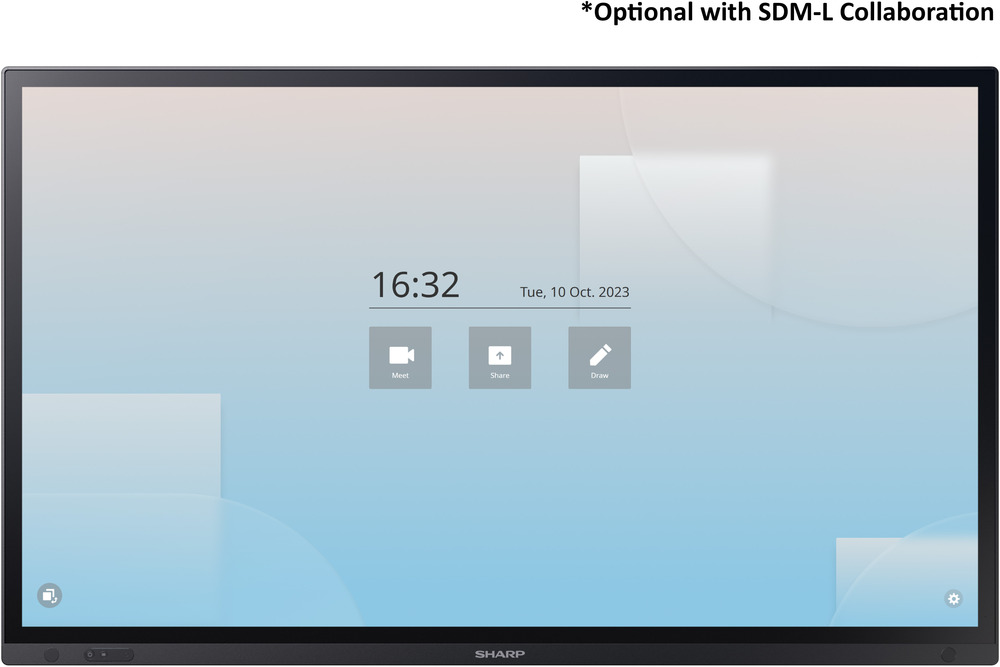

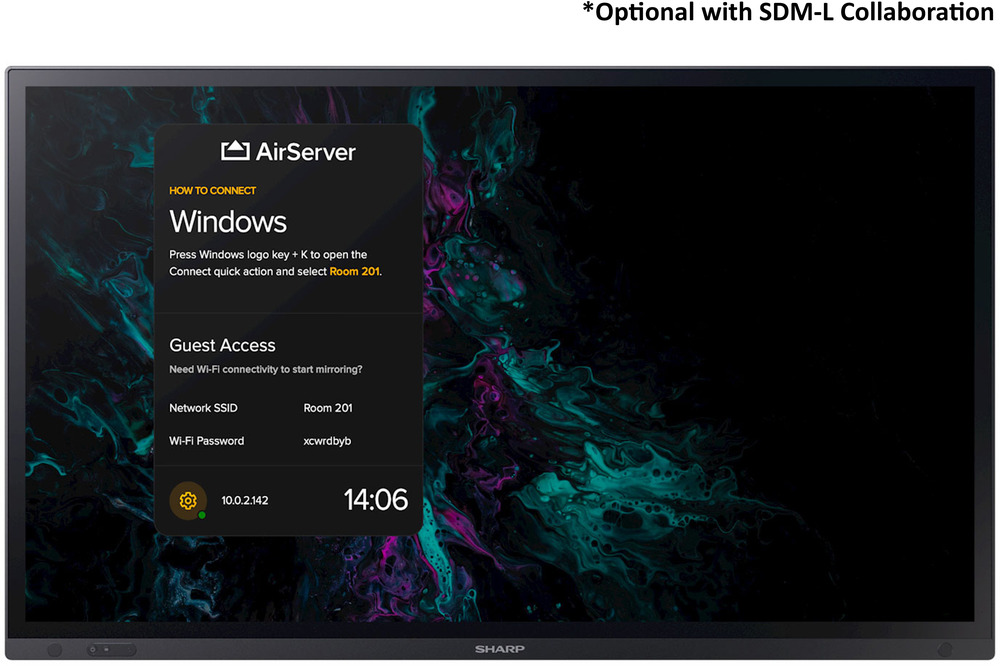

Bringing advanced professional functionality to Enterprise users, the Sharp/NEC PN-LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.
Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.
The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.
The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.
Bringing advanced professional functionality to Enterprise users, the Sharp/NEC PN-LA series safeguards the highest IT security standards whilst supporting maximum choice and flexibility. An Intel™SDM slot expands the display’s customisable capability allowing safe and seamless integration into corporate IT systems, or benefit from pre-installed functionality including Sharp Meeting Launcher for quick access to your favourite apps and VC platforms, FlatFrog Board collaborative whiteboarding software, and AirServer™ for wireless screen sharing.
Featuring InGlass™ M5 premium touch technology, users benefit from the most natural writing experience and advanced interactive functionality. The high brightness output, high haze panel and premium glass coating delivers best readability in well-lit meeting rooms, without distraction from reflections, glare or fingerprints.
The LA series supports orientation any which way, including face up, allowing table-top, tilted desk or multi-board side-by-side installations for up to three displays. Users can connect their own notebook, safely and securely via a USB-C connection, providing best versatility in hybrid meetings and spontaneous collaborative interactions.
The LA series integrates elegantly and seamlessly into high-end meeting rooms and boardrooms providing trusted long-life performance whilst making minimal energy demands.
Key features
- Most natural writing experience – InGlass™ M5 premium touch system supports patented pressure sensitivity using passive pens as well as Windows Ink and palm rejection.
- Secure by design – the non-Android platform with additional security features meets the highest IT security standards.
- Optional Windows based Intel SDM slot-in PC – driving unlimited versatility with powerful integrated computing for quick and easy access to your apps offering a secure and locked environment.

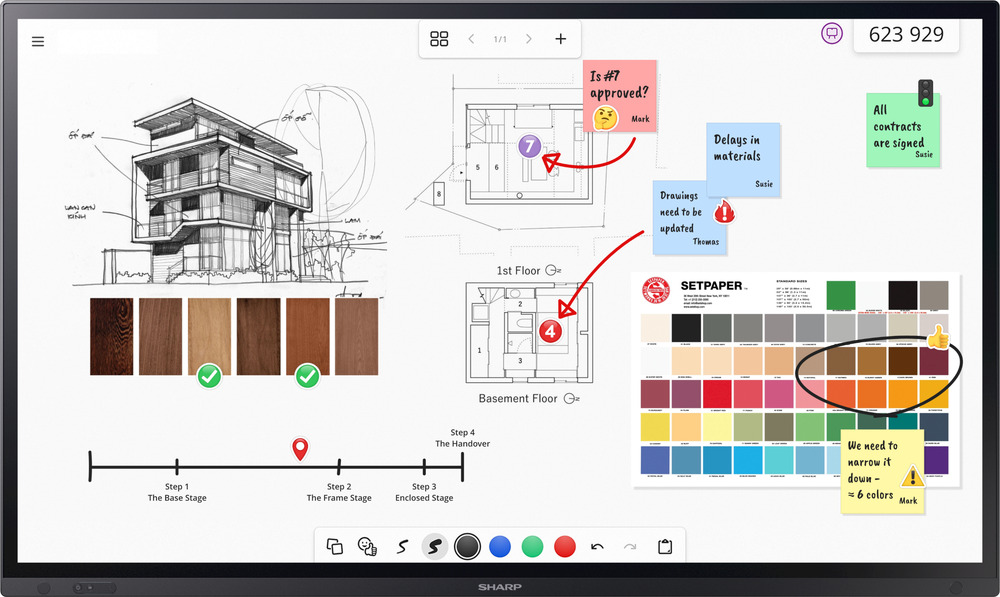

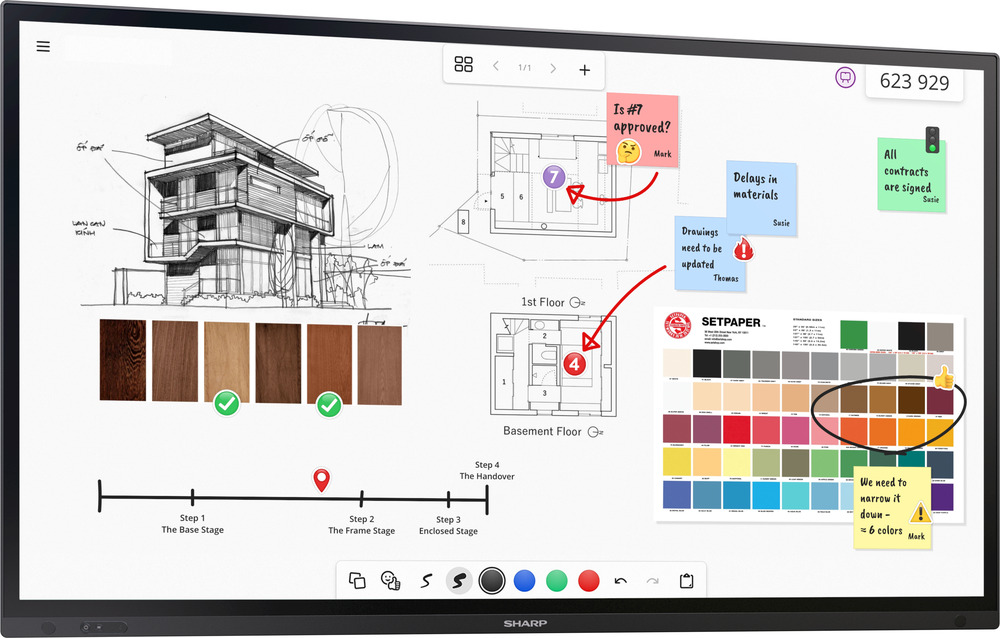

- Increase your productivity – benefit from a free one-year license for FlatFrog Board for Rooms. FlatFrog Board whiteboard software makes hybrid work easy and productive for everyone
- Energy efficiency – built-in functionality including an ambient light sensor, human presence detection and eco modes help to reduce power consumption.
Related products
Sharp/ NEC PN-LA752
Integrating elegantly and seamlessly into high-end meeting rooms and boardrooms, the PN-LA series maintains the highest IT security standards whilst offering flexibility and supporting maximum productivity.
Display Module Data
| Panel Technology | IPS with Direct LED backlights |
| Native Resolution (Pixels) | 3840 x 2160 |
| Diagonal Size (inches / cm) | 75 / 189.3 |
| Aspect Ratio | 16:9 |
| Backlight Technology | LED |
| Brightness (cd/m2) | 450 |
| Contrast Ratio | 1200:1 |
| Response Time (grey to grey avg) ms | 8 |
| Viewing Angle (H/V)0 CR >10 | 178 / 178 |
| Colour Depth [bn] | 1.073 (10bit) |
Key Specifications
| Special Characteristics | DICOM Simulation; HDMI ARC; Powered USB Port (5 W) |
| 24/7 Operation Certified | yes |
| Local Dimming | yes |
| Built in Speakers (W) | 10 W + 10 W |
| Computer Input - Plug and Play | no |
| Power Management | yes |
| Fanless | no |
Touch Interface Specification
| Technology | InGlass™ M5 |
| Number of Touch Points | 20 |
| Coating / Filter | Anti-glare coating |
| Screen Hardness (H) | ≥ 8 |
| Operating System Compatibility | Native Multi-Touch: Windows 7, Windows 8, Windows 10, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X |
| Thickness [mm] | 3 |
| Haze Level [%] | 4 ~ 8 |
| Touch Method | Finger; Gloves; Stylus (≥ 2 mm) |
| Data Interface | USB-HID |
| Accuracy [mm] | < 1 |
| Palm Rejection | Yes |
| Windows Ink | Yes |
Power Supply and Operating Environment
| Operating Voltage(ACV) / Frequency(Hz) | 100-240; 50/60 |
| Power Consumption (W) (Operating MAX) | 205 shipping |
| Operating Temperature (oC) | +5 to +35 |
| Humidity (%) | 20 to 80 |
| Power Savings Mode [W] | < 0.5 (ECO Standby); < 2 (Networked Standby) |
Weights and Measures
| Bezel Size (L/R) mm | 4.8 |
| Bezel Size (U/L) mm | 4.8 /32.3 |
| Product Dimensions (W/H/D) mm | 1,720.1 x 1,025.9 x 86.5 |
| Product Weight Without Stand (Kg) | 56.5 |
Installation
| Landscape | yes |
| Portrait | yes |
| Horizontal | yes |

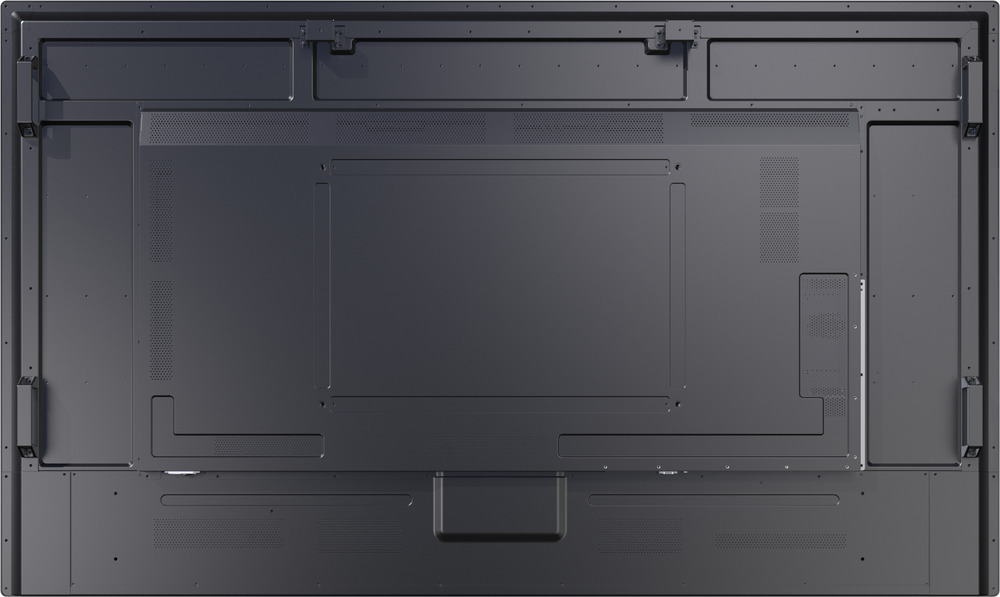

| Mounting (VESA/Number of Points/Pitch mm) | 4; 600 x 400 |
Connectivity (Audio/Video) INPUT
| HDMI | 2 |
| USB-C | 1 |
| DisplayPort | 1 |
Connectivity (Audio/Video) OUTPUT
| DisplayPort | 1 |
| Audio/Headphone 3.5mm Jack | 1 |
Connectivity (Control/Serial Data)
| RS232C IN | 1 |
| LAN Port | 1 |
| USB | 4 |
Accessories
| Shipping Contents | 1x 300 cm USB Cable; 2 x Passive Stylus; 2x AAA batteries; Blank Sticker; Bracket for Camera; Bracket for Mini PC; Cable Clamps; Display; Power Cable; Remote Control; Setup Manual |
